OpenWRT VxLAN

Posted on 2022-02-08 Edited on 2022-02-09

1. Topology

GL.inet MT1300 is MT7621 chip

2. device config

2.1 QFX5100 config

2.1.1 interface config

# L2 interface
set xe-0/0/0 unit 0 family ethernet-switching interface-mode access
set xe-0/0/0 unit 0 family ethernet-switching vlan members vlan-vxlan10

# connect L2 switch
set xe-0/0/37 unit 0 family ethernet-switching interface-mode trunk
set xe-0/0/37 unit 0 family ethernet-switching vlan members vlan81

# vtep source interface
set irb unit 81 family inet address 11.81.1.1/24
set lo0 unit 0 family inet address 11.1.1.1/32

vlan-vxlan10 is vxlan vlan

2.1.2 protocol config

set routing-options router-id 11.1.1.1
set routing-options autonomous-system 65000
set protocols bgp group evpn type internal
set protocols bgp group evpn local-address 11.1.1.1
set protocols bgp group evpn family evpn signaling
set protocols bgp group evpn allow 11.81.1.0/24
set protocols bgp group evpn allow 11.82.1.0/24
set protocols evpn encapsulation vxlan
set protocols evpn vni-options vni 10 vrf-target target:65000:10
set protocols evpn extended-vni-list 10

2.1.3 switch and vlan config

set switch-options vtep-source-interface lo0.0
set switch-options route-distinguisher 11.1.1.1:10
set switch-options vrf-target target:65000:10
set vlans vlan-vxlan10 vlan-id 10
set vlans vlan-vxlan10 vxlan vni 10
set vlans vlan-vxlan10 vxlan ingress-node-replication
set vlans vlan81 description "openwrt test"
set vlans vlan81 vlan-id 81
set vlans vlan81 l3-interface irb.81

2.2 OpenWRT config

2.2.1 FRR config

router bgp 65000
 bgp router-id 11.81.1.2
 neighbor evpn peer-group
 neighbor evpn remote-as internal
 neighbor evpn update-source wan
 neighbor 11.1.1.1 peer-group evpn
 !
 address-family l2vpn evpn
  neighbor evpn activate
  advertise-all-vni
  advertise ipv4 unicast
 exit-address-family

2.2.2 vxlan interface config

The OpenWRT config (/etc/config/network) must need vxlan peeraddr.

ref: https://openwrt.org/docs/guide-user/network/tunneling_interface_protocols

so, use hotplug to add the vxlan interface.

root@OpenWrt:~# cat /etc/hotplug.d/iface/50-vxlan
#!/bin/sh

[ "$ACTION" == "ifup" ] && [ "$INTERFACE" == "wan" ] && {

WAN_IFNAME='wan@eth0'
WAN_IP="$(ip -br a | grep "$WAN_IFNAME" | grep -Eo '[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}')"

ip link del vxlan1
ip link add vxlan1 type vxlan id 10 local ${WAN_IP} dstport 4789
ip link set vxlan1 master br-lan
ip link set vxlan1 up

}

2.2.3 firewall config

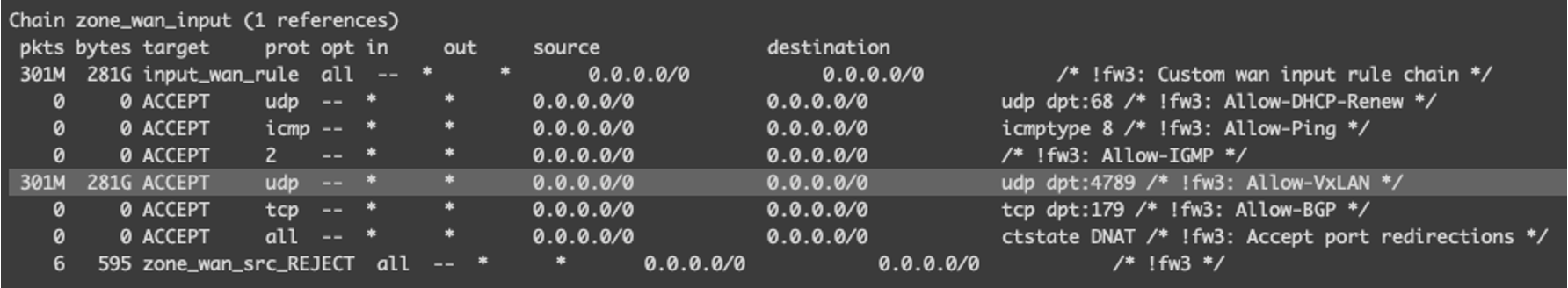

The OpenWRT default firewall is disable the VxLAN traffic. so we need add the firewall rule. JUNOS will use 4789 to connect the VxLAN.

# … in the /etc/config/firewall
config rule
        option name             Allow-VxLAN
        option src              wan
        option dest_port        4789
        option proto            udp
        option target           ACCEPT

if we need another BGP speaker to connect active. we need to add the BGP 179(TCP) port in the firewall rule. In my use case, the JUNOS BGP speaker is passive mode.

# … in the /etc/config/firewall
config rule
        option name             Allow-BGP
        option src              wan
        option dest_port        179
        option proto            tcp
        option target           ACCEPT

3. vxlan evpn status

3.1 QFX5100

3.1.1 BGP (control plane)

BGP peer is evpn.

lab@qfx5100-48s-6q> show bgp summary
Threading mode: BGP I/O
Groups: 1 Peers: 1 Down peers: 0
Unconfigured peers: 1
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
bgp.evpn.0
                       2          2          0          0          0          0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
11.81.1.2             65000         80         70       0       0       28:40 Establ
  __default_evpn__.evpn.0: 0/0/0/0
  bgp.evpn.0: 2/2/2/0
  default-switch.evpn.0: 2/2/2/0

BGP evpn NLRI

lab@qfx5100-48s-6q> show route table bgp.evpn.0

bgp.evpn.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

2:11.1.1.1:10::10::e4:43:4b:f6:c5:56/304 MAC/IP
                   *[EVPN/170] 00:39:07
                       Indirect
2:11.81.1.2:2::0::e4:43:4b:f6:c5:75/304 MAC/IP
                   *[BGP/170] 00:45:24, localpref 100
                      AS path: I, validation-state: unverified
                    >  to 11.81.1.2 via irb.81
2:11.1.1.1:10::10::e4:43:4b:f6:c5:56::192.168.8.100/304 MAC/IP
                   *[EVPN/170] 00:19:13
                       Indirect
2:11.81.1.2:2::0::e4:43:4b:f6:c5:75::192.168.8.10/304 MAC/IP
                   *[BGP/170] 00:00:19, localpref 100
                      AS path: I, validation-state: unverified
                    >  to 11.81.1.2 via irb.81
3:11.1.1.1:10::10::11.1.1.1/248 IM
                   *[EVPN/170] 00:46:26
                       Indirect
3:11.81.1.2:2::0::11.81.1.2/248 IM
                   *[BGP/170] 00:45:24, localpref 100
                      AS path: I, validation-state: unverified
                    >  to 11.81.1.2 via irb.81

One evpn BGP NLRI extensive information.

lab@qfx5100-48s-6q> show route table bgp.evpn.0 extensive evpn-mac-address e4:43:4b:f6:c5:75

bgp.evpn.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
2:11.81.1.2:2::0::e4:43:4b:f6:c5:75/304 MAC/IP (1 entry, 0 announced)
        *BGP    Preference: 170/-101
                Route Distinguisher: 11.81.1.2:2
                Next hop type: Indirect, Next hop index: 0
                Address: 0xccd60b0
                Next-hop reference count: 4
                Source: 11.81.1.2
                Protocol next hop: 11.81.1.2
                Indirect next hop: 0x2 no-forward INH Session ID: 0x0
                State: <Active Int Ext>
                Local AS: 65000 Peer AS: 65000
                Age: 17:50:15 	Metric2: 0
                Validation State: unverified
                Task: BGP_65000.11.81.1.2+43211
                AS path: I
                Communities: target:65000:10 encapsulation:vxlan(0x8)
                Import Accepted
                Route Label: 10
                ESI: 00:00:00:00:00:00:00:00:00:00
                Localpref: 100
                Router ID: 11.81.1.2
                Secondary Tables: default-switch.evpn.0
                Indirect next hops: 1
                        Protocol next hop: 11.81.1.2
                        Indirect next hop: 0x2 no-forward INH Session ID: 0x0
                        Indirect path forwarding next hops: 1
                                Next hop type: Router
                                Next hop: 11.81.1.2 via irb.81
                                Session Id: 0x0
				11.81.1.0/24 Originating RIB: inet.0
				  Node path count: 1
				  Forwarding nexthops: 1
					Next hop type: Interface
					Nexthop: via irb.81

3.1.2 forwarding plane

mac-ip table

{master:0}
lab@qfx5100-48s-6q> show ethernet-switching mac-ip-table

MAC IP flags  (S - Static, D - Dynamic, L - Local , R - Remote, Lp - Local Proxy,
               Rp - Remote Proxy, K - Kernel, RT - Dest Route, AD - Advt to remote,
               RE - Re-ARP/ND, RO - Router, OV - Override)
 Routing instance : default-switch
 Bridging domain : vlan-vxlan10
   IP                           MAC                  Flags             Logical            Active
   address                      address                                Interface          source
   192.168.8.100                e4:43:4b:f6:c5:56    DL,K,AD           xe-0/0/0.0
   192.168.8.10                 e4:43:4b:f6:c5:75    DR,K              vtep.32769         11.81.1.2

MAC table:

{master:0}
lab@qfx5100-48s-6q> show ethernet-switching table

MAC flags (S - static MAC, D - dynamic MAC, L - locally learned, P - Persistent static
           SE - statistics enabled, NM - non configured MAC, R - remote PE MAC, O - ovsdb MAC)


Ethernet switching table : 3 entries, 3 learned
Routing instance : default-switch
   Vlan                MAC                 MAC      Logical                Active
   name                address             flags    interface              source
   vlan-vxlan10        e4:43:4b:f6:c5:56   D        xe-0/0/0.0
   vlan-vxlan10        e4:43:4b:f6:c5:75   D        vtep.32769             11.81.1.2
   vlan81              94:83:c4:16:51:44   D        xe-0/0/37.0

{master:0}

forwarding-table detail:

{master:0}
lab@qfx5100-48s-6q> show route forwarding-table family ethernet-switching matching e4:43:4b:f6:c5:75/48 extensive
Routing table: default-switch.evpn-vxlan [Index 7]
Bridging domain: vlan-vxlan10.evpn-vxlan [Index 3]
VPLS:
Enabled protocols: Bridging, ACKed by all peers, EVPN VXLAN,

Destination:  e4:43:4b:f6:c5:75/48
  Learn VLAN: 0                        Route type: user
  Route reference: 0                   Route interface-index: 566
  Multicast RPF nh index: 0
  P2mpidx: 0
  IFL generation: 131                  Epoch: 0
  Sequence Number: 0                   Learn Mask: 0x4000000000000000000000000000000000000000
  L2 Flags: control_dyn
  Flags: sent to PFE
  Nexthop:
  Next-hop type: composite             Index: 1742     Reference: 5
  Next-hop type: indirect              Index: 524286   Reference: 3
  Nexthop: 11.81.1.2
  Next-hop type: unicast               Index: 1741     Reference: 4
  Next-hop interface: xe-0/0/37.0

3.2 OpenWRT

3.2.1 BGP

BGP peer

# frr command
OpenWrt# show bgp l2vpn evpn summ
BGP router identifier 11.81.1.2, local AS number 65000 vrf-id 0
BGP table version 0
RIB entries 3, using 384 bytes of memory
Peers 1, using 10896 bytes of memory
Peer groups 1, using 32 bytes of memory

Neighbor        V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt
11.1.1.1        4      65000      3090      3048        0    0    0 17:27:52            3        3

Total number of neighbors 1

evpn BGP NLRI

# frr command
OpenWrt# show bgp l2vpn evpn
BGP table version is 15, local router ID is 11.81.1.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
EVPN type-1 prefix: [1]:[ESI]:[EthTag]:[IPlen]:[VTEP-IP]
EVPN type-2 prefix: [2]:[EthTag]:[MAClen]:[MAC]:[IPlen]:[IP]
EVPN type-3 prefix: [3]:[EthTag]:[IPlen]:[OrigIP]
EVPN type-4 prefix: [4]:[ESI]:[IPlen]:[OrigIP]
EVPN type-5 prefix: [5]:[EthTag]:[IPlen]:[IP]

   Network          Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 11.1.1.1:10
*>i[2]:[10]:[48]:[e4:43:4b:f6:c5:56]
                    11.1.1.1                      100      0 i
                    RT:65000:10 ET:8
*>i[2]:[10]:[48]:[e4:43:4b:f6:c5:56]:[32]:[192.168.8.100]
                    11.1.1.1                      100      0 i
                    RT:65000:10 ET:8
*>i[3]:[10]:[32]:[11.1.1.1]
                    11.1.1.1                      100      0 i
                    RT:65000:10 ET:8
Route Distinguisher: 11.81.1.2:2
*> [2]:[0]:[48]:[e4:43:4b:f6:c5:75]
                    11.81.1.2                          32768 i
                    ET:8 RT:65000:10
*> [2]:[0]:[48]:[e4:43:4b:f6:c5:75]:[32]:[192.168.8.10]
                    11.81.1.2                          32768 i
                    ET:8 RT:65000:10
*> [3]:[0]:[32]:[11.81.1.2]
                    11.81.1.2                          32768 i
                    ET:8 RT:65000:10

Displayed 6 out of 6 total prefixes

evpn BGP advertised-routes

# frr command
OpenWrt# show bgp l2vpn evpn neighbors 11.1.1.1 advertised-routes
BGP table version is 0, local router ID is 11.81.1.2
Default local pref 100, local AS 65000
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 11.81.1.2:2
*> [2]:[0]:[48]:[e4:43:4b:f6:c5:75]
                                  100  32768 i
*> [2]:[0]:[48]:[e4:43:4b:f6:c5:75]:[32]:[192.168.8.10]
                                  100  32768 i
*> [3]:[0]:[32]:[11.81.1.2]
                                  100  32768 i

Total number of prefixes 3

3.2.2 Linux forwarding plane

bridge fdb

# linux command
root@OpenWrt:~# bridge fdb | grep -E 'vxlan|wan|lan1'
e4:43:4b:f6:c5:75 dev lan1 master br-lan
94:83:c4:16:51:45 dev lan1 vlan 1 master br-lan permanent
94:83:c4:16:51:45 dev lan1 master br-lan permanent
e4:43:4b:f6:c5:75 dev lan1 vlan 1 self
c0:42:d0:08:9a:80 dev wan vlan 1 self
1c:9c:8c:67:c3:44 dev wan vlan 1 self
1c:9c:8c:68:e4:c0 dev wan vlan 1 self
e4:43:4b:f6:c5:56 dev vxlan1 vlan 1 extern_learn master br-lan
e4:43:4b:f6:c5:56 dev vxlan1 extern_learn master br-lan
3e:dd:f3:a4:65:2b dev vxlan1 vlan 1 master br-lan permanent
3e:dd:f3:a4:65:2b dev vxlan1 master br-lan permanent
00:00:00:00:00:00 dev vxlan1 dst 11.1.1.1 self permanent
e4:43:4b:f6:c5:56 dev vxlan1 dst 11.1.1.1 self extern_learn
33:33:00:00:00:01 dev wlan1 self permanent
33:33:00:00:00:02 dev wlan1 self permanent

00:00:00:00:00:00 dev vxlan1 dst 11.1.1.1 self permanent. is add by /lib/netifd/proto/vxlan.sh

vxlan interface:

root@OpenWrt:~# ip -d link show vxlan1
8: vxlan1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-lan state UNKNOWN mode DEFAULT group default qlen 1000
    link/ether 3e:dd:f3:a4:65:2b brd ff:ff:ff:ff:ff:ff promiscuity 1 minmtu 68 maxmtu 65535
    vxlan id 10 local 11.81.1.2 srcport 0 0 dstport 4789 ttl auto ageing 300 udpcsum noudp6zerocsumtx noudp6zerocsumrx
    bridge_slave state forwarding priority 32 cost 100 hairpin off guard off root_block off fastleave off learning on flood on port_id 0x8003 port_no 0x3 designated_port 32771 designated_cost 0 designated_bridge 7fff.94:83:C4:16:51:45 designated_root 7fff.94:83:C4:16:51:45 hold_timer    0.00 message_age_timer    0.00 forward_delay_timer    0.00 topology_change_ack 0 config_pending 0 proxy_arp off proxy_arp_wifi off mcast_router 1 mcast_fast_leave off mcast_flood on mcast_to_unicast off neigh_suppress off group_fwd_mask 0 group_fwd_mask_str 0x0 vlan_tunnel off isolated off addrgenmode eui64 numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535

linux bridge:

root@OpenWrt:~# brctl show
bridge name	bridge id		STP enabled	interfaces
br-lan		7fff.9483c4165145	no		lan2
							vxlan1
							lan1
